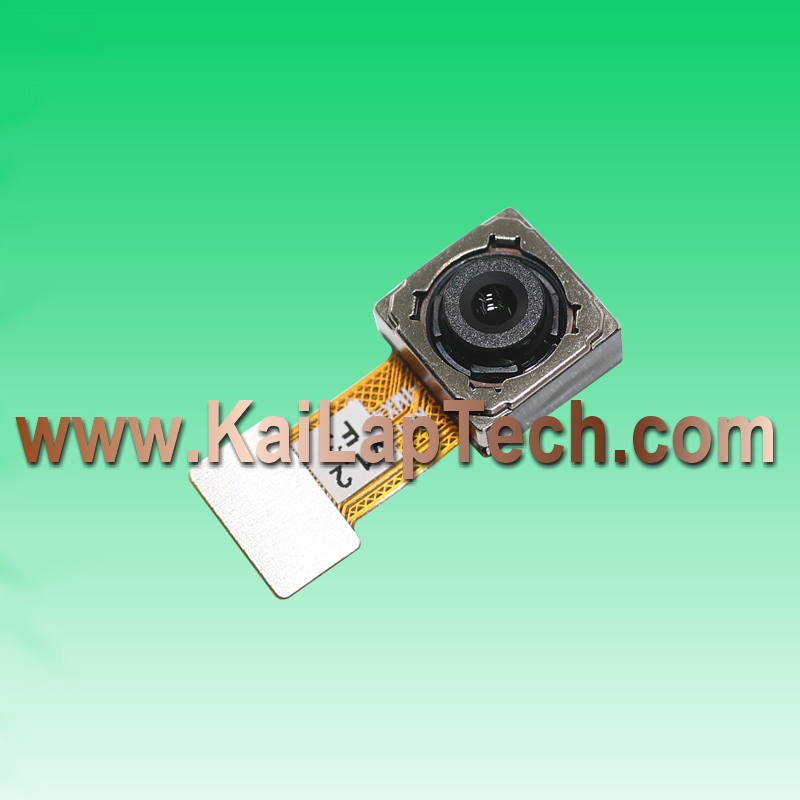

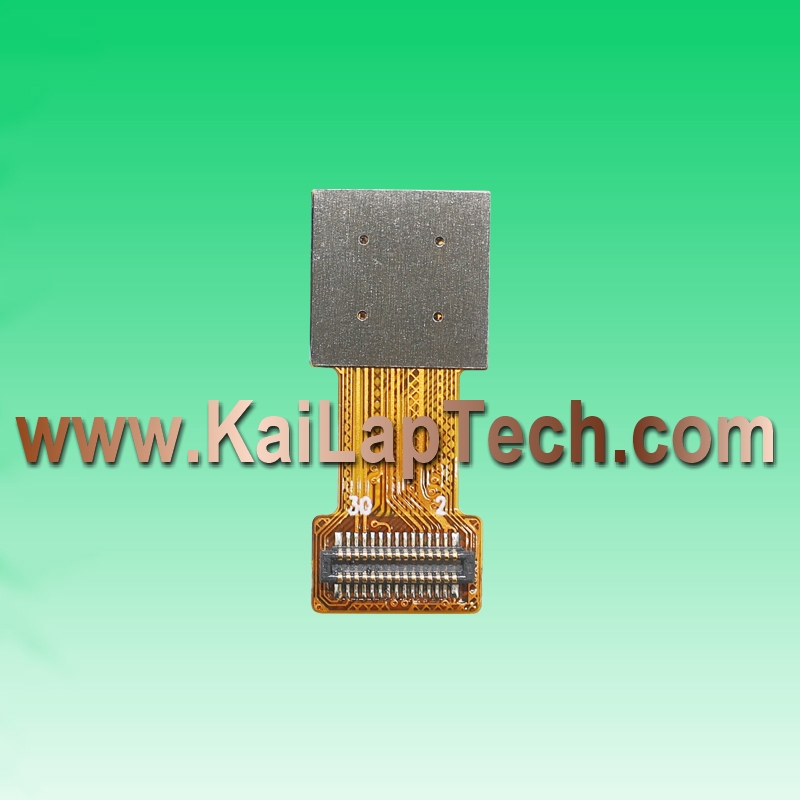

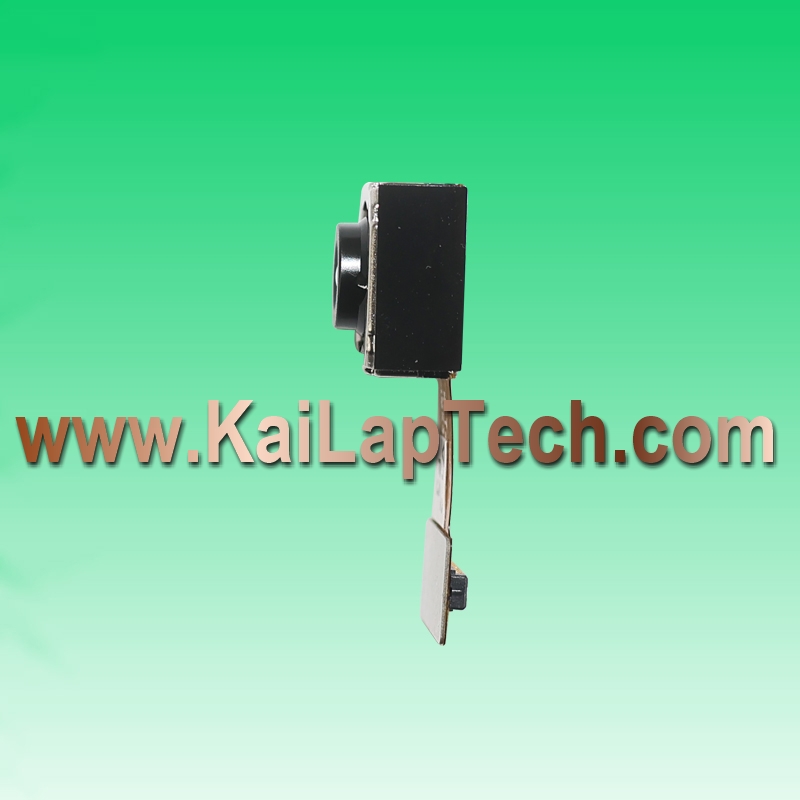

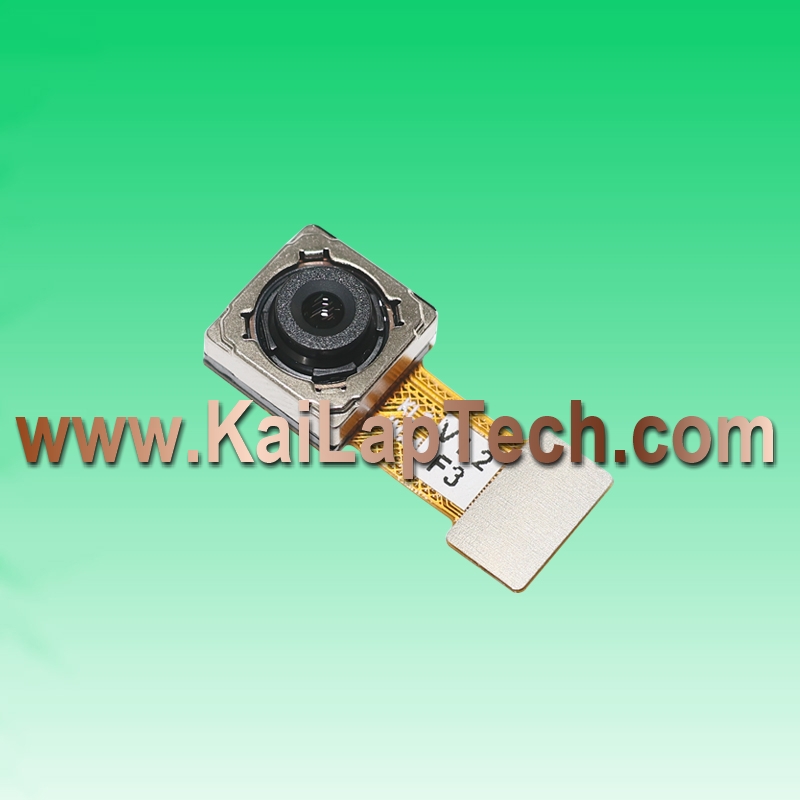

        20MP Sony IMX476 MIPI Interface Auto Focus Camera Module
        Model No.   KLT-D3MA-IMX476 V1.2








 Camera Module No. KLT-D3MA-IMX476 V1.2
 Resolution 20 MP
 Image Sensor IMX476
 Sensor Type 1/2.78"
 Pixel Size 1.00 um x 1.00 um
 EFL 3.95 mm
 F.NO 1.8
 Pixel 5216 x 4032
 View Angle 78.0°(DFOV)  65.9°(HFOV)  52.0°(VFOV)
 Lens Dimensions 8.80 x 8.80 x 5.65 mm
 Module Size 21.00 x 8.80 mm
 Module Type Auto Focus
 Interface MIPI
 Auto Focus VCM Driver IC DW9763
 Lens Type 650nm IR Cut
 Operating Temperature -20°C to +70°C
 Mating Connector BBR43-30KB533
