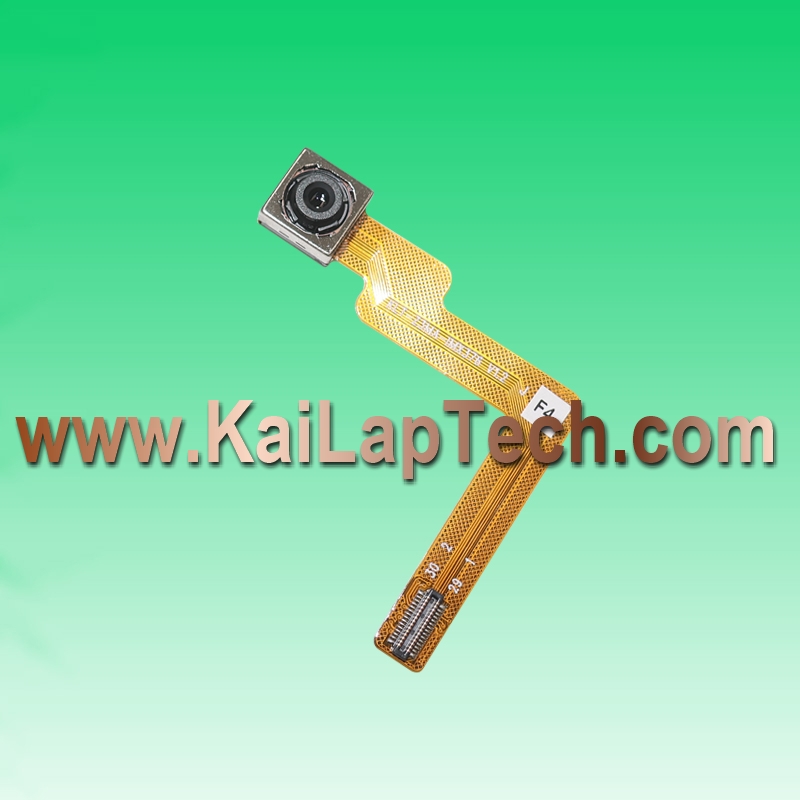

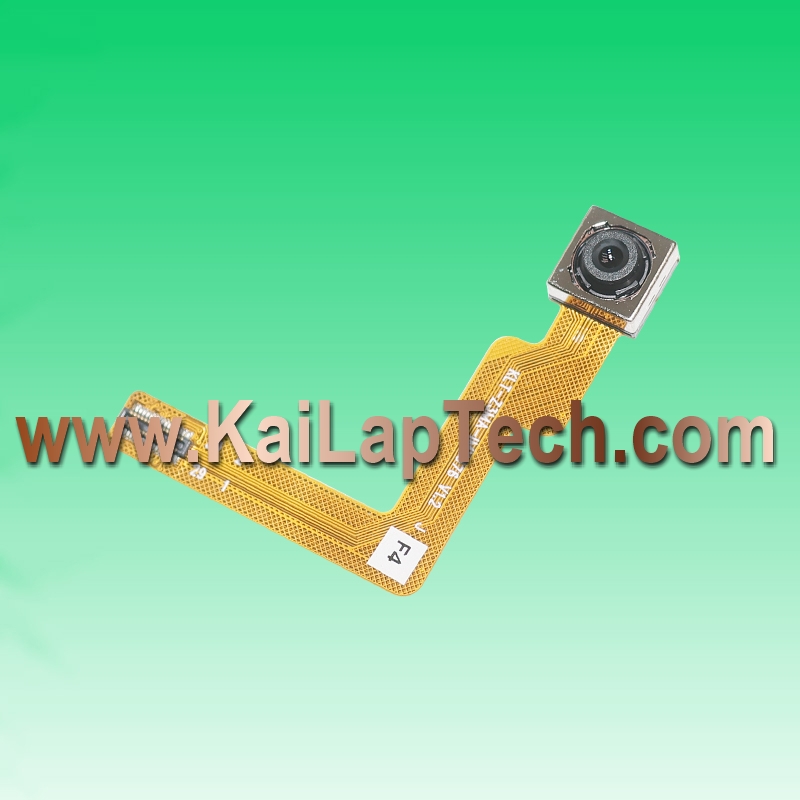

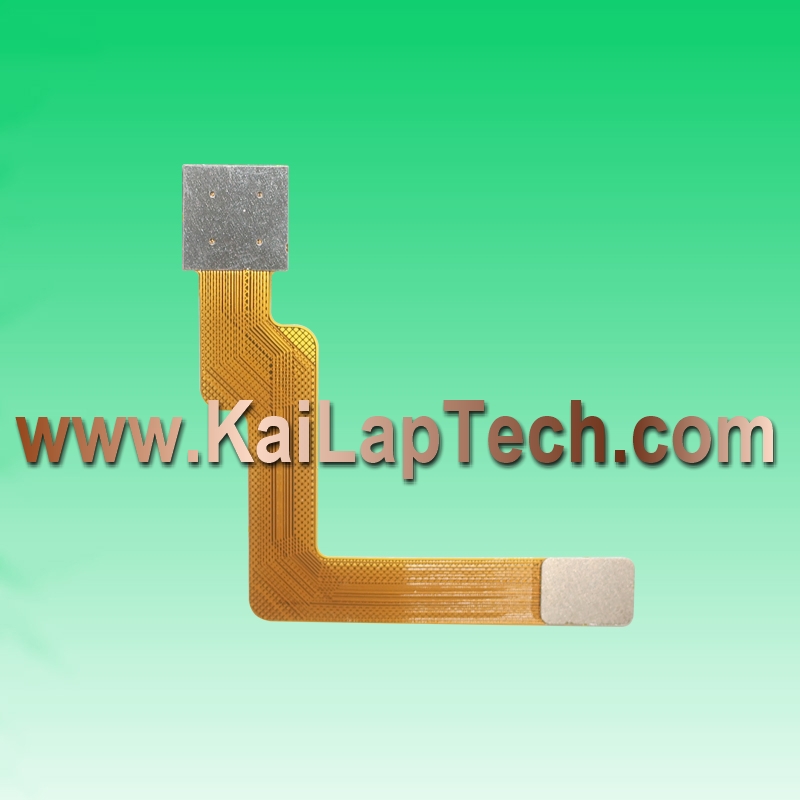

| 20MP Sony IMX376 MIPI Interface Auto Focus Camera Module |
| Model No. KLT-Z3MA-IMX376 V1.2 |
| Camera Module No. |
KLT-Z3MA-IMX376 V1.2 |
| Resolution |
20 MP |
| Image Sensor |
IMX376 |
| Sensor Type |
1/2.78" |
| Pixel Size |
1.00 um x 1.00 um |
| EFL |
3.95 mm |
| F.NO |
1.8 |
| Pixel |
5216 x 3896 |
| View Angle |
78.0°(DFOV) 65.9°(HFOV) 52.0°(VFOV) |
| Lens Dimensions |
8.80 x 8.80 x 5.65 mm |
| Module Size |
39.28 x 38.90 mm |
| Module Type |
Auto Focus |
| Interface |
MIPI |
| Auto Focus VCM Driver IC |
DW9763 |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +60°C |
| Mating Connector |
BBR43-30KB533 |
|
