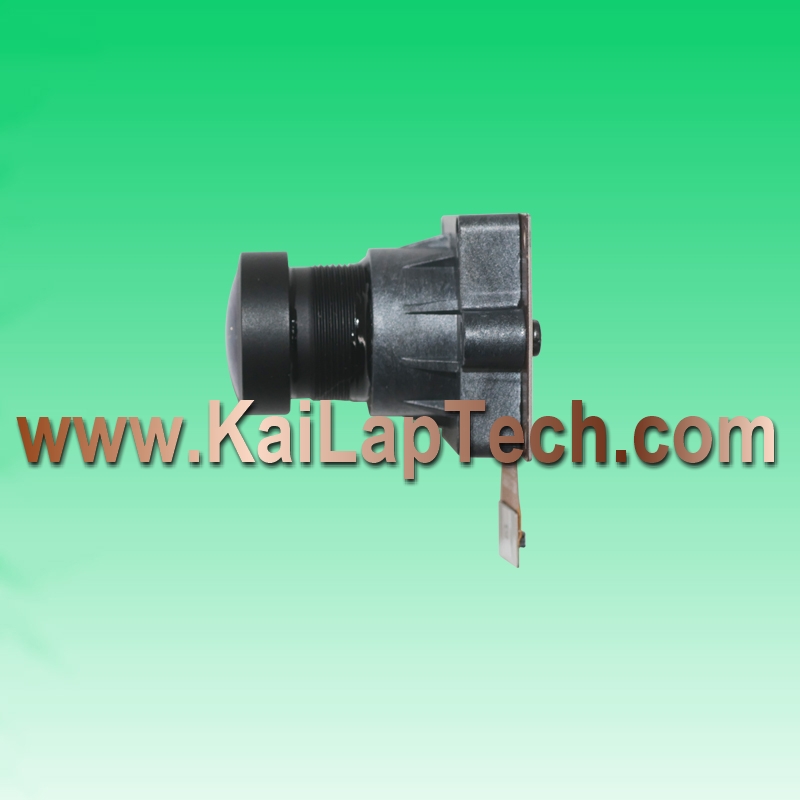

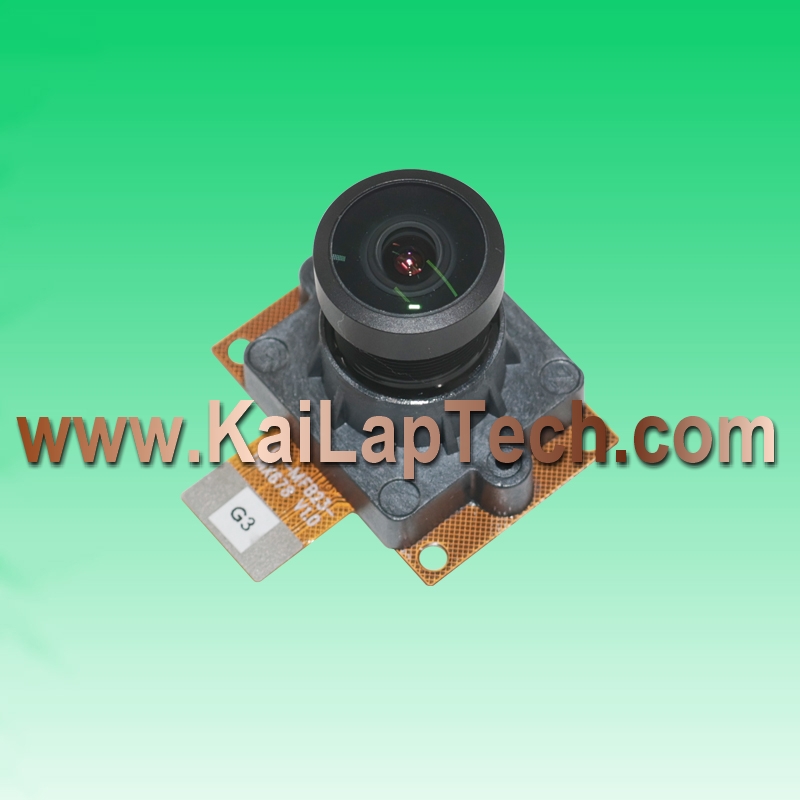

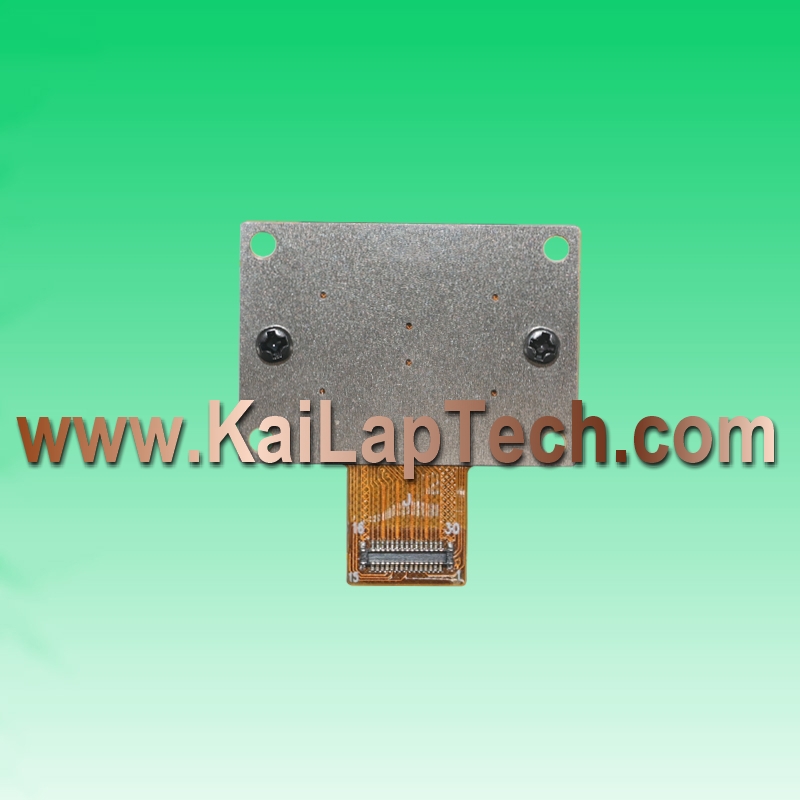

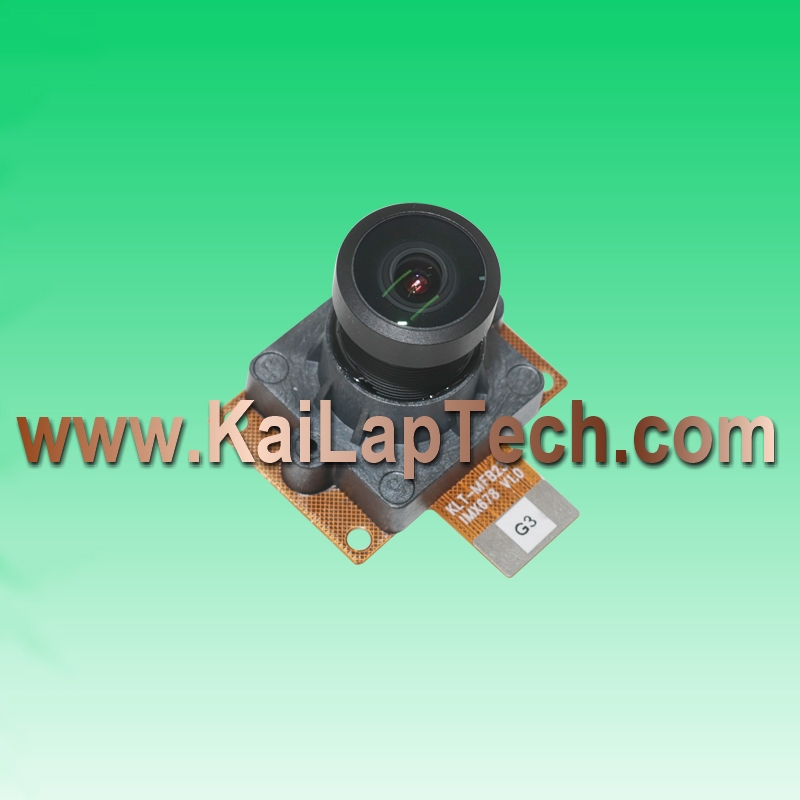

8.40MP Sony IMX678 MIPI Interface M12 Fixed Focus Camera Module
Model No.
KLT-MFB23-IMX678 V1.0
Camera Module No.
KLT-MFB23-IMX678 V1.0
Resolution
8.40MP
Image Sensor
IMX678
Sensor Type
1/1.8"
Pixel Size
2.0 um x 2.0 um
EFL
4.00 mm
F.NO
2.00
Pixel
3856 x 2200
View Angle
135.0°(DFOV) 110.0°(HFOV) 72.0°(VFOV)
Lens Dimensions
20.00 x 20.00 x 24.50 mm
Module Size
30.05 x 28.00 mm
Module Type
Fixed Focus
Interface
MIPI
Auto Focus VCM Driver IC
None
Lens Type
650nm IR Cut
Operating Temperature
-30°C to +85°C
Mating Connector
OK-14F030-04
